SKL clip rail fastening system

Specifications
Type: Sleepers
Material: Q235, 60Si2MnA,
Place of Origin: China (Mainland)
Brand Name: THRAIL
Model Number: SKL14
SKL TENSION CLIP: Dia.13mm
Ss35screw spike: M24*150MM,M24*160MM,M24*180MM, OR LENGTH AS ORDERED
Plain washer: uls7
Plastic dowel: For different sizes of screw spike
Screw spike: M24*150MM,M24*160MM,M24*180MM, OR LENGTH AS ORDERED
Guide plate: UIC54,UIC60,50KG/60KG RAIL, OTHER SIZES AS ORDERED
Rail Pad: UIC54,UIC60, and size as ordered
Brand name: THRAIL
Title: SKL Rail Fastening clip
Packaging & Delivery
Packaging Details: Free packaging: waterproof double woven bag Plus the tray is regular packing
Charge for packing: wooden case iron or plastic drum was conducted according to customer's requirements

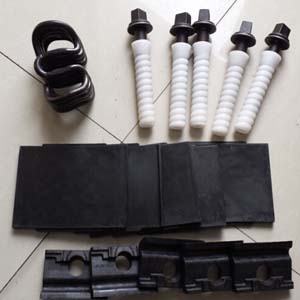

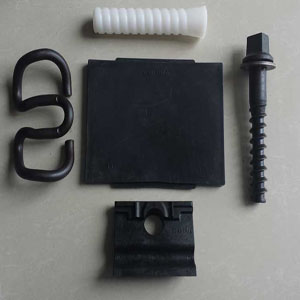

One set of Vossloh fastening system contains
A) Tension clamp Skl14 -2 units;
B) Screw spike Ss 35/Uls 7 -2 units;
C) Angled Guide Plate Wfp-14K12 -2 units;
D) Plastic dowel -2units;
E) Rail Pad Zw686a- 1units;
F) Application: High-speed Lines
G) Customization: Available

	SKL tension clip	Ss35 screw spike	Flat washer	Plastic dowel	Guide plate	Rail pad
Pieces required	2	2	2	2	2	1
Material	60Si2CrA, 60Si2CrA, 38Si7	Grade 4.6: Q235; Grade 5.6: 35# Grade 8.8: 45#	Q235	HDPE, Reinforced Nylon 66 (PA66)	Reinforced Nylon 66 (PA66)	EVA, or rubber
Size	skl1,skl3,skl12,skl14	M24×150mm	Uls7	For different sizes of screw spike	UIC54, UIC60, 50kg rail, 60kg rail, and other sizes as ordered
NOTE	Hardness: 42-47HRC 5 millions cycles without breaking. Standard: DIN17221, GB/T1222	Standard: ISO898-1, UIC864-1 and NF F500-50	Standard: EN10025, EN10139	To insert into concrete sleeper	Customized products available.
