AWS1615-crane-rail-clips

The THRAIL AWS1615/38 crane rail clips (adjustable rail fixing clip) is specially designed for heavy  rail.Its greatest advantage is that it has a very low height after installation and it can help to fix the rail on the narrowest steel girder.It can not only minimize installation cost,but also meet all usages of the cranes with horizontal guide rollers.
SPECIFICATIONS
Max side load 120kN,15mm horizontal rail adjustment
PRODUCT PERFORMANCE
1.It can be used for all kinds of cranes with or without guide rollers.
2.THRAIL rail clip is equipped with vulcanized integral rubber blocks.It can help reduce noise greatly and improve working environment while fastening rails.
3.The rail clips has a self-locking mechanism which makes the clip locked automatically by the pitched clip cap and weldable base with wedge structure theory.
4.It provides a optimal installation size.It’s no need to drill hole on the steel girder when installation.Also the bolts don’t need to be threaded through the hole from beneath of the steel girder.Workers only need to weld the weldable base on the steel rail support.The two parts(clip cap and weldable base) are locked together with grade 8.8 bolt.
5 The crane rail fixing clipswith vulcanized rubber blocks helps control the deviation between rail and crane girder.It can be installed easily with impact wrench.More over,it provides a great deal of convenience for rail installation and adjustment of the rail lateral movement.

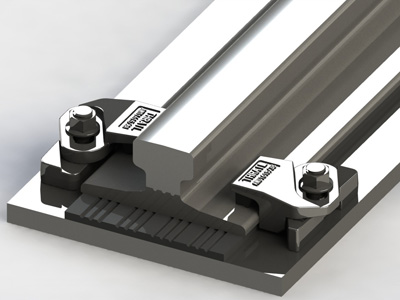

THRAIL-AWS1615-rail-clips THRAIL-AWS1615-rail-clips

crane-rail-clips-aws16crane rail clips
