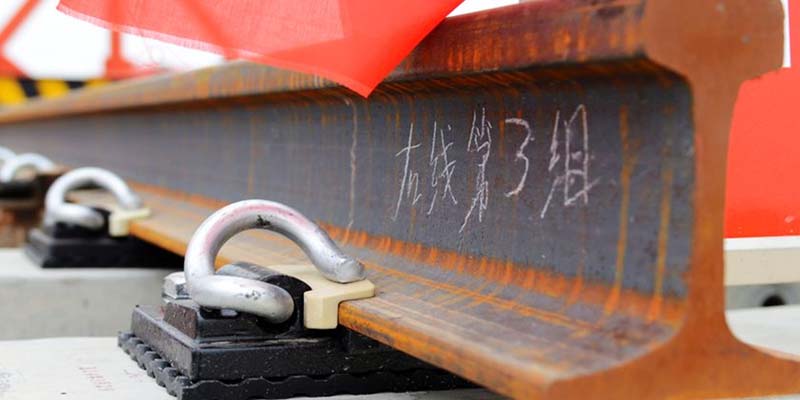

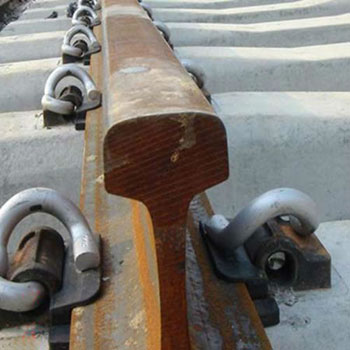

E-clip rail fastening system
E-clip rail fastening system

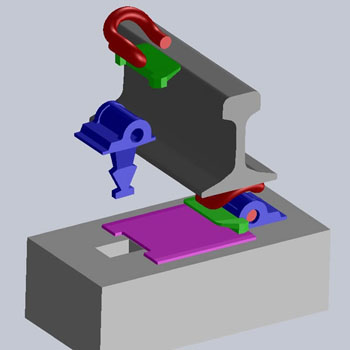

Technical Parameters for ONE unit of E clip rail fastening system
.jpg)
.jpg)
.jpg)
.png)
| Item included | Quantity | Material | Size | Remark |
|---|---|---|---|---|

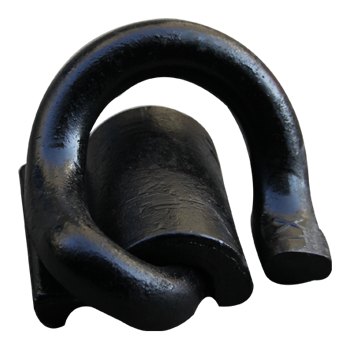

| E clip | 2 | 60Si2MnA, 60Si2CrA | Dia. 16mm,18mm or 20mm (E1809, E2006,E2007,E2009,etc | Hardness: 44-48HRC |
| Toe Load: Dia.16mm: 500-700kgf; Dia.18mm:750-900kgf; Dia.20mm:1100-1400kgf | ||||
| Fatigue life: 5 millions cycles without breaking | ||||
| Standard: DIN17221, BS970, GB/T1222 | ||||

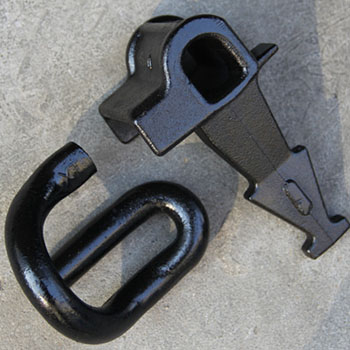

| Shoulder | 2 | QT500-7, QT450-10 | For UIC54, UIC60, 115RE, BS80lbs, BS100lbs, 50kg rail, 60kg rail, etc. | Note: Hardness of E-clip is 44-48HRC; Toe Load for E-clip is 500-700kgf (Dia.16mm); 750-900kgf(Dia.18mm); 1100-1400kgf(Dia.20mm); Fatigue life of E-clip is 5 millions cycles without breaking DIN17221, BS970, GB/T1222 qualified E-clip |
| Rail pad | 1 | HDPE, rubber or EVA | ||
| Insulator | 2 | Reinforced Nylon 66 (PA66) |
.jpg)
