Elastic Rail Clip

Elastic Rail Clip

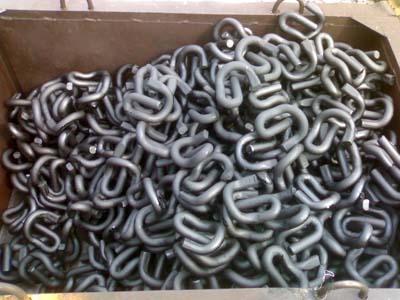

Rail elastic clip is used to fasten the rails to the underlying base plate together with the concrete sleeper. Usually rail clips are made of forged spring steel which is produced by hot forging process. Because of the uniform microstructure of forged clips, it is considered to be better than other metal forming process.THRAIL offer an extensive range of rail clips with optimum quality, these rail clips are designed with high precision and made up of premium grade spring steel. THRAIL has been the largest and most competitive production base of rail clip in China after more than 20 years’ rail clip producing experience, and have qualification to tender nationally large and medium scaled rail projects. What’s more, our rail clip can be customized according to clients’ requirements.
We produce Various kinds of rail clips of E-type(E1609, E1809, E1817, E2007, E2009, E2055,etc), SKL tension clamps (SKL1, SKL3, SKL12, SKL14, SKL75, etc), PR series, Nabla clips, gauge lock clip, Deenik clip as well as other standard and non-standard clips (e.g. Pandrol and Vossloh) can be customized by drawings or samples.
1. We are engaged in manufacturing and supplying elastic rail clip products which are exclusively used in railways. Fabricated with optimum quality raw materials, these elastic rail clips are designed with high precision which impart high tensile strength and corrosion resistance. Our products can also be customized according to clients' requirement at a client desired price.
Universally accepted in the railway industry, elastic rail clip provides high performance clamping of the rail, coupled with ease of installation.
As out of patent technology from both manufacturers (Pandrol and Vossloh) has become available to the general supply market, THRAIL has linked up with reputable quality manufacturers to offer a cost effective range of elastic rail clip to suit many rail sections and applications as well as selected SKL tension clamp.
Strict dimensional control, as well as the use of high quality spring steel, ensure that the elastic rail clip and other elastic railway fastenings supplied by THRAIL are within specified ranges aimed at meeting customer requirements.
We are extremely capable of producing elastic rail clip for any type of toe load and axle load requirements to fix the rails on wooden, steel or concrete sleepers. We offer various elastic rail clip with size steel bar diameter from 12mm to 20mm. We manufacture different types of elastic rail clips with flat toe for broad gauge line, having the toe load from 850kgf to 1100kgf, and are capable of providing any type of toe load and axle load to fix the rails on wooden, steel or concrete sleeper.
2. We are the principal manufacturer and exporter of SKL tension clamp, which ensures the electric insulation of the rail on its support. These tension clamps are mainly used to maintain the rail elastically on its support, in both the vertical and transverse directions. We have provided a fixing and supporting device for a rail, comprising a support defining table for the rail and a projecting shoulder on each side of said table, a pad interposed between the rail and the support table, an insulating clip having a body cooperative with the shoulder and a nose portion bearing against the flange of the rail, at least one elastically yieldable strip, and fixing equipment extending through apertures of the body of the elastic rail clip and the strip.
Our elastic rail clip is a boltable clip with high permanent clip strength. This rail clip is especially applied in rail construction with concrete sleepers with the diameter 13mm to 15mm, range from SKL1, SKL2, SKL3, SKL12, SKL14, SKL21, etc.
3. We produce PR series elastic rail clip, such as PR309, PR401, and PR601
Material: 60Si2MnA
Surface: Plain, black painting, red painting
MOQ: 5000PCS
Packing: Plastic bags and wooden pallets or according to clients' requirement

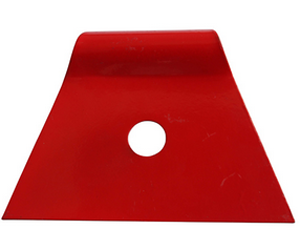

4. The Nabla clips are also within our range. The hardness of this elastic rail clip is HRC51-55 and all our elastic railway clips have excellent elastic property, with load 2500DaN. After the first two tests, variation of the height after releasing is only 0.45mm and after three more tests, there is only 0.1mm variation of height. The finished Nabla clip can be painted red or other colors, according to the requirement of our client.
Material: 60Si2MnA
Surface: Red painting
MOQ: 5000PCS
Packing: Plastic bags and wooden pallets or according to clients' requirement
5. We also produce the gauge lock clip according to our customers’ requirement.
Material: 60Si2MnA
Surface: Red painting
MOQ: 5000PCS
Packing: Plastic bags and wooden pallets or according to clients' requirement

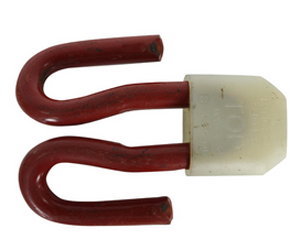

6. Rail Deenik Clip
The rail Deenik clip is widely used in South America. It has a diameter of 16mm and adopts spring steel 60Si2MnA as its material. The invention of rail clips revolutionized the speed of the railway transportation. As the manufacturer of rail clips, we are proud of our high quality products and good after-sale service, which have been appraised by many clients.
7. Fast Clip
The fast clip is designed with a captive system. Sleeper manufacturers shall assemble the components on the sleeper before delivery. This product is specially offered for the mechanized track renewals requiring automated clipping machines or hand tools. The clip for the system is manufactured in the shape of M, driven at right angles to the rail. Specially provided for 26t axle load, the fast clip can be produced for heavy haul rail with the axle load up to 40t.
Features
A. Shoulders insusceptible to accidental damage
B. Robust toe insulators
C. Less and simple hand tools required for installation
D. Easy to use in the concrete sleeper factory
One of the key features of the fast clip system is the new plastic seal plate, which is used to seal the hole in the sleeper mold and is then cast into the sleeper. This design minimizes the contact between the steel mold and the cast iron shoulder of the assembly, increasing mold life accordingly. It also prevents slurry from leaking into the shoulder.
8. Fist Clip
The fist clip is produced from 60Si2MnA. Packed in wooden box, this product can be manufactured with plain, black, or red surface.

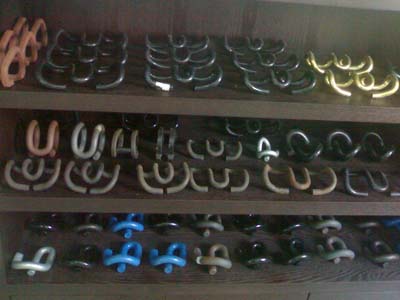

Elastic Rail Clip Elastic Rail Clip Elastic Rail Clip Elastic Rail Clip
SKL 12  Rail Clip SKL 3  Rail Clip E2001 rail clip E2055 rail clip
Elastic Rail Clip Elastic Rail Clip Elastic Rail Clip Elastic Rail Clip
Nabla Spring blade Fast clip Special rail clip Deenik clip
Elastic Rail Clip Elastic Rail Clip Elastic Rail Clip Elastic Rail Clip
Ⅲtype rail clip Deenik clip SKL 14  Rail Clip  PR415 Rail Clip
E1609 rail clip GL1419 rail clip  PR85 rail clip Russian rail clip
E1609 rail clip GL1419 rail clip  PR85 rail clip Russian rail clip

Varieties of Rail Elastic clips
Series Type Hardness Material Fatigue life Surface
E rail clip E1,E2,E3 44-48HRC
60Si2MnA:
C:0.56-0.64, Mn:0.60-0.90, Si:1.60-2.00, Cr:≤0.35, P:≤0.03, S:≤0.03

60Si2CrA:
C:0.56-0.64, Mn:0.40-0.70, Si:1.40-1.80,Cr:0.70-1.00 P:≤0.03, S:≤0.03

55Si2Mn:
C:0.52-0.60, Mn:0.60-0.90, Si:1.50-2.00,Cr:≤0.35 P:≤0.03, S:≤0.03

38Si7:
C:0.35-0.42, Mn:0.50-0.80, Si:1.50-1.80, P:≤0.03, S:≤0.03
For Dia.18 is 3 millions cycles without breaking.




For Dia.20 is 5 millions cycles without breaking.
Plain (oiled), Oxide black, color painting or upon customer requirement.

E1609
E1809
E1817
E2001
E2006
E2009
E2055
E2056
Vossloh clip&
Forged rail clip
SKL1 42-47HRC
PR rail clip PR309 44-48HRC
PR401
PR601
PR85
We can also manufacture customized rail clips following your drawings or samples!

All above rail clips can be well used under pressure of over 2700lbs
Item Materials Diameter Weight HRC Under pressure Fatigue test Export area
Type III 60Si2MnA ø18 0.80kg 44-48 ≥950kgf 5000000
times
without
breaking
America Spain Brazil
1809 60Si2MnA ø18 0.63 kg 44-48 ≥950kgf Southeast Asia
e1609 60Si2MnA ø16 0.43 kg 44-48 ≥950kgf America European
e1813 60Si2MnA ø18 0.60 kg 44-48 ≥950kgf America Brazil
e2001 60Si2MnA ø20 0.80 kg 44-48 ≥950kgf Indonesia
e2007 60Si2MnA ø20 0.80 kg 44-48 ≥950kgf Korea
e2009 60Si2MnA ø20 0.80 kg 44-48 ≥950kgf European Brazil
e2055 60Si2MnA ø20 0.80 kg 44-48 ≥950kgf America
e2056 60Si2MnA ø20 0.80 kg 44-48 ≥950kgf Brazil Indonesia
e2063 60Si2MnA ø20 0.80 kg 44-48 ≥950kgf America UK
PR401 60Si2MnA ø20 0.97 kg 44-48 ≥950kgf America
PR415 60Si2MnA ø20 0.95 kg 44-48 ≥950kgf America Indonesia
PR601A 60Si2MnA ø22 1.23 kg 44-48 ≥950kgf America Taiwan
SKL-1 38Si7 ø13 0.53 kg 44-48 ≥950kgf America Taiwan
SKL-3 38Si7 ø13 0.53 kg 44-48 ≥950kgf America Hong Kong

Item No. Material Clip Lenth Clip Hight Clip Diameter Hardness Pressure Fatigue test
e2007 60Si2MnA 105±5 38max ø20±0.3 44-48 ≥9.5KN 5,000,000 times without broken
D1 60Si2MnA 100±3 58±3.0 ø18±0.25 44-48 ≥8.25KN 5,000,000 times without broken
E18 60Si2MnA 100±3 58±3.0 ø18±0.25 44-48 ≥9.5KN 5,000,000 times without broken
E18 Anti-theft 60Si2MnA 100±3 57±3.0 ø18±0.25 44-48 ≥9.5KN 5,000,000 times without broken
E19 60Si2MnA 100±3 56.5±3.0 ø20±0.25 44-48 ≥8.25KN 5,000,000 times without broken
E20 60Si2MnA 100±3 56.5±3.0 ø20±0.25 44-48 ≥8.25KN 5,000,000 times without broken
e1609 60Si2MnA 93±3 30max ø16±0.25 44-48 ≥6.0KN 5,000,000 times without broken
e1809 60Si2MnA 104±3 36max ø18±0.25 44-48 ≥7.5KN 3,000,000 times without broken
e1817 60Si2MnA 104±3 37.5±3.0 ø18±0.25 44-48 ≥7.5KN 5,000,000 times without broken
e2009 60Si2MnA 106±3 ≤37.5 ø20±0.25 44-48 ≥9.5KN 5,000,000 times without broken
e2039 60Si2MnA 104±3 37max ø20±0.25 44-48 ≥9.5KN 5,000,000 times without broken
e2055-1 60Si2MnA 106±3 39±2.0 ø20±0.25 44-48 ≥9.5KN 5,000,000 times without broken
e2055-2 60Si2MnA 106±3 56.6±3.0 ø20±0.25 44-48 ≥9.5KN 5,000,000 times without broken
e2055 60Si2MnA 106±3 56.6±3.0 ø20±0.25 44-48 ≥9.5KN 5,000,000 times without broken
e2056 60Si2MnA 106±3 56.6±2.5 ø20±0.25 44-48 ≥2.7KN 5,000,000 times without broken
e2063 60Si2MnA 110.5 53.4 ø20±0.25 44-48 ≥2.75KN 5,000,000 times without broken
III 60Si2MnA 110±2.8 63±2.8 ø20±0.25 44-48 12.4-13KN 5,000,000 times without broken
PR85 60Si2MnA 88±3   ø13±0.25 44-48 ≥9.5KN 5,000,000 times without broken
PR309 60Si2MnA 110   ø19±0.25 44-48 700-900KN 5,000,000 times without broken
PR401 60Si2MnA 127±3 38.1±3.0 ø20±0.3 44-48 5.0-7.0KN 5,000,000 times without broken
SKL-14 60Si2MnA 155±2.0   ø14±0.2 42-47 ≥8.5KN 5,000,000 times without broken
SKL-3 60Si2CrA 120±2.0   ø13±0.3 42-47 8-12KN 5,000,000 times without broken
SKL-1 60Si3CrA 133±2.0   ø13±0.3 42-47 8-12KN 5,000,000 times without broken

Rail clip processing procedures includes:
1.     Raw material purchasing
2.     Shearing
3.     Heating to forging temperature
4.     Forming
5.     Hardening
6.     Tempering
7.     Surface treatment
8.     Inspection-Packing
To produce rail clips usually use spring steel bar as the raw materials, before heating, raw materials must be sheared according to the length required. Then they are heated to 950℃ to 1000℃, next works transfer the heated bar to power press for forging, in accordance with drawing three sets of dies and fixtures are kept before hammering. The following procedure is to convey the forged rail clips to quenching tank. Then check the dimensional accuracy and quench hardness of the rail clips. The next procedure is tempering to achieve appropriate toughness in the spring. And the final step is to pack the rail clips after serious inspection.
Quality control
THRAIL has strict test and completely authentication at every single step of manufacturing rail clips and a full set of quality control system, from raw material purchasing to the finished rail clip packing. We have a professional inspection team to check about each process of the production line.

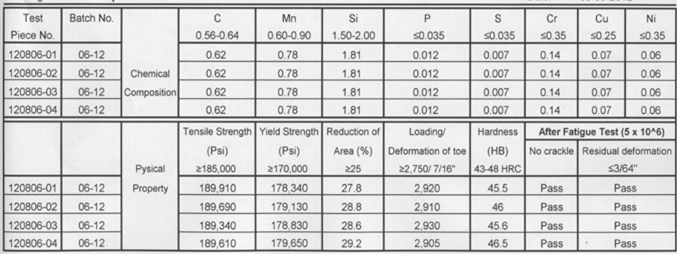

Testing report for E2055:
Elastic Rail Clip

Elastic Rail ClipElastic Rail Clip
Elastic Rail ClipElastic Rail Clip

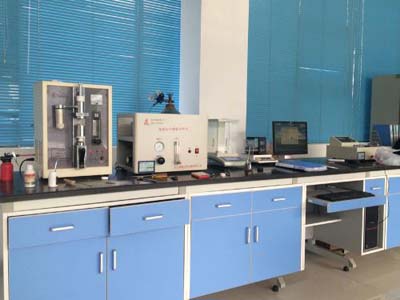

Some inspection machines for finished rail clips:
·         Brinell Hardness Tester
·         Carbons and Sulfur Analyzer
·         Rockwell Hardness Machine to test metallic materials
·         Automatic Impact Testing Machine
·         Metallographic Microscopes
·         Automatic High-Speed Analyzer
·         Fatigue Testing Machine
·         Metallographic Specimen Polishing Machine
·         Metallographic Specimen Pointing Machine
Elastic Rail ClipElastic Rail Clip
